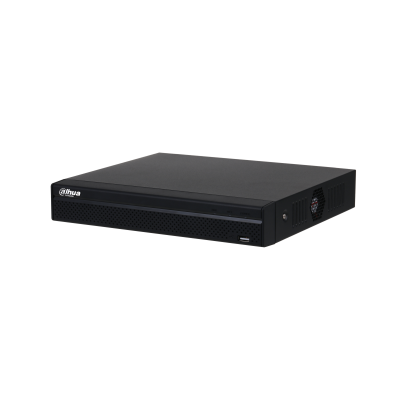

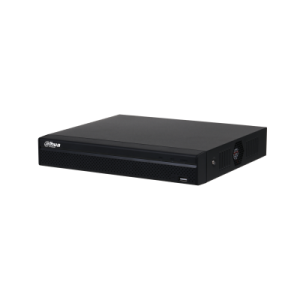

NVR4108HS-4KS2/L * 8 Channel Compact 1U 1HDD Network Video Recorder

Playback Function

1. Play/pause/stop/slow/quick/backward/by frame
2. Full screen, backup (video clip/file), partial zoom in, and audio on/off

Storage

Disk Group

Yes

Alarm

General Alarm

Motion detection, privacy masking, video loss, scene changing, PIR alarm, IPC external alarm

Anomaly Alarm

Camera disconnection, storage error, disk full, IP conflict, MAC conflict, login locked, and cybersecurity exception

Intelligent Alarm

Face detection, perimeter protection (intrusion and tripwire), IVS, people counting, heat map, and SMD alarms

Alarm Linkage

Recording, snapshot, audio, buzzer, log, preset, and email

External Port

Audio Input

1 × RCA input

Audio Output

1 × RCA output

HDD

1 SATA III ports, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature

USB

2 (1 × front USB2.0; 1 × back USB2.0)

HDMI

1 (supports up to 4K resolution output)

VGA

1

Network

1 × RJ-45, 10/100 Mbps self-adaptive Ethernet port

General Parameter

Power Supply

12 V DC, 2 A

Power Consumption

< 10 W (HDD not included, idling)

Net Weight

0.81 kg (1.79 lb)

Gross Weight

1.41 kg (3.11 lb)

Product Dimensions

260 mm × 232.5 mm × 50.3 mm (10.24" × 9.15" × 1.98") (W × L × H)

Package Dimensions

89 mm × 333 mm × 315 mm (3.50" × 13.11" × 12.40") (W × L × H)

Operating Conditions

–10 °C to +55 °C (+10 °F to +131 °F)

Storage Conditions

0 °C to +40 °C (32 °F to 104 °F)

Operating Humidity

10℅~93℅

Storage Humidity

30%~85%

Operating Altitude

3000 m (9842.52 ft)

Installation

Desktop mounted

Certifications

System
