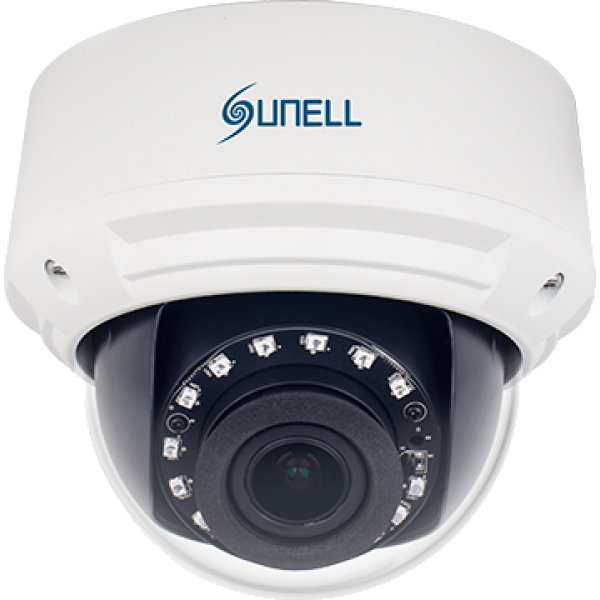

SN-IPV57/41UDR/Z * Camera IP Dome, 1/3” Progressive Scan 4MP CMOS Low Light
Descriere Produs
Dome, 1/3” Progressive Scan 4MP CMOS Low Light; Color 0.05Lux; IR ON 0 Lux; Auto Iris Fix; WDR>120dB
Lentila motorizata, 2.8-8mm / 90°~ 35°(H)
IR: 15 buc. LED SuperFlux / 15-20m
Compresie: H.264/265, MJPEG
Main stream: 500-12000kbps
Sub stream: 100-6000Kbps
Rezolutie maxima: 2592*1520/2560*1440/20fps, 2304*1296/1920*1080/30fps
Stream: Stream1 2592*1520/2560*1440/2304*1296/1920x1080Setari imagine: Rotatie, Saturatie, Luminozitate, Contrast, ClaritateHLC, Mod coridor 9:16, DIS, ROI, Anti-ceata; HTTP,HTTPS, RTSP, DHCP, NTP, PPPoE, Unicast si Multicast
Onvif, CGI
Retea: 1 conector RJ-45, 10/100 Base-T
Alimentare: 12Vcc/POE, 3W (IR LED OFF); 5.5W (IR LED ON)
Temperatura: -30°C ~ +60°C
Protectie la intemperii: IP66
Dimensiuni: 112(H) x 130(Φ)mm
| Senzor imagine | 1/3” Progressive Scan 4MP CMOS Low Light |
|---|---|
| Rezolutie/FPS | 2592*1520/2560*1440/20fps,2304*1296/1920*1080/30fps |
| Iluminare minima | Color 0.05Lux; IR ON 0 Lux |
| Unghi de vizibilitate | 89°~ 35°(H) |
| Led IR | 15 buc. LED SuperFlux |
| Distanta IR | 15- 20m |
| Compresie | H.264/265, MJPEG |
| TCP/IP | 1 Ethernet (10/100 Base-T) RJ-45 Connector |
| Standard | Onvif,CGI |
| Protocoale de retea | HTTP, HTTPS, RTSP, DHCP, NTP, PPPoE, Unicast si Multicast |
| Lentila | Motorizata, 2.8-8mm |
| Tensiune de functionare | 12Vcc / PoE Clasa 3 |
| Certificate | CE, IP66, FCC, RoHS |
| Temperatura de functionare | -30°C ~ +60° |
| Dimensiuni | 112(H) x 130(Φ)mm |
| Nivel de umiditate admis | 10% - 85% RH |
| Greutate | 900g |
