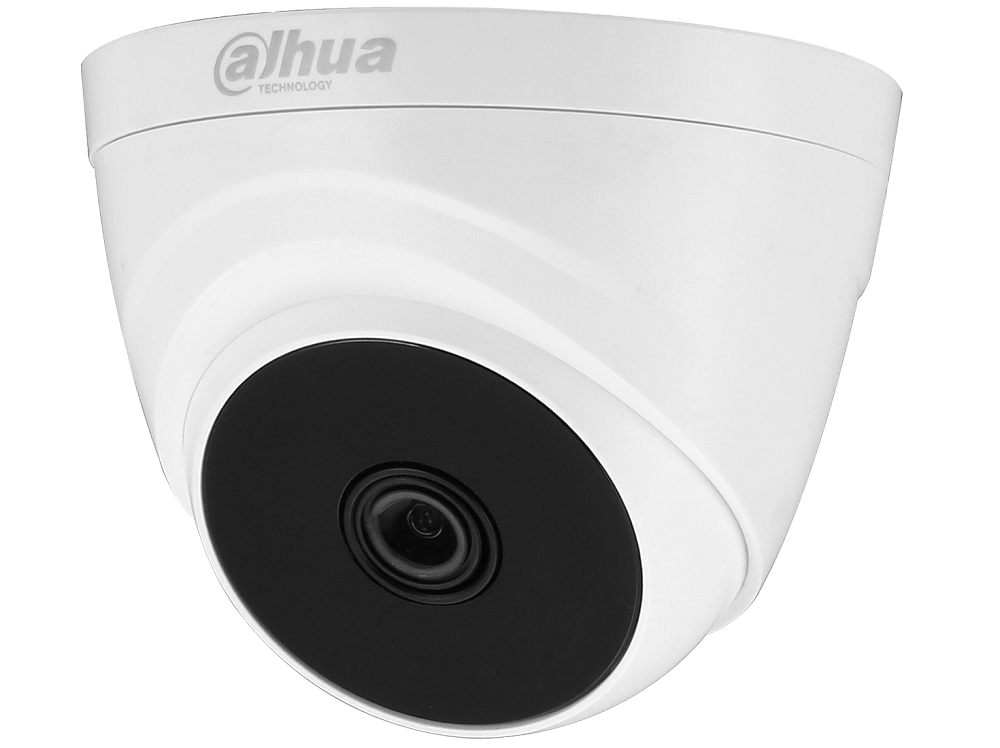

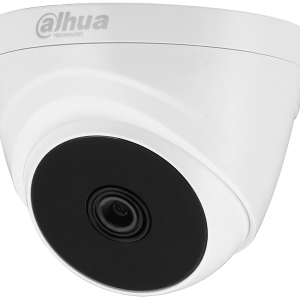

HAC-T1A21-0280B * Camera dome HDCVI, 2 MP, IR 20 metri, lentila 2.8mm
COD Produs : 7340Y220122
Descriere Produs
Denumire produs : HAC-T1A21-0280B * Camera dome HDCVI, 2 MP, IR 20 metri, lentila 2.8mm
|
Distanta DORI |
||
| DORI | Distanta | |
| Definitie | ||
| Detectie | 25px/m | 2.8mm: 37m |
| Observe | 63px/m | 2.8mm: 15m |
| Recognize | 125px/m | 2.8mm: 8m |
| Identify | 250ppm | 2.8mm: 4m |
0.09kg
|
Certificari |
||
| Certificari | CE (EN55032, EN55024, EN50130-4) | |
| FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) | ||
| Interfete | ||
| Audio Interface | N/A | |
| Electric | ||
| Alimentare | 12V DC ±30% | |
| Consum | Max. 2.3W (12V DC, IR on) | |
| Mediu | ||
| Conditii de operare | -40°C ~ +60°C, < 95% RH | |
| * Pornirea trebuie facuta la o temperatura peste -40°C | ||
| Carcasa | ||
| Carcasa | Plastic | |
| Dimensiuni | 85mm×85mm×69mm | |
| Greutate | ||
|
Camera |
||
| Senzor imagine | 1/2.7" CMOS | |
| Pixeli | 1920(H)×1080(V), 2MP | |
| Sisten scanare | Progresiva | |
| Electronic Shutter Speed | PAL: 1/25~1/100000s | |
| NTSC: 1/30~1/100000s | ||
| Iluminare minima | 0.04Lux/F1.85, 30IRE, 0Lux IR on | |
| S/N Ratio | > 65dB | |
| IR | 20m | |
| IR On/Off Control | Auto / Manual | |
| Lentila | ||
| Tip lentila | Fixa | |
| Distanta focala | 2.8mm | |
| Apertura maxima | F1.85 | |
| Unghi vizualizare | 103° | |
| Focus Control | N/A | |
| Close Focus Distance | 500mm | |
| Pan / Tilt / Rotation | ||
| Pan/Tilt/Rotation | Pan: 0° ~ 360° | |
| Tilt: 0° ~ 78° | ||
| Rotation: 0° ~ 360° | ||
| Video | ||
| Rezolutie | 1080P (1920×1080) | |
| Frame Rate | 25/30fps@1080P, 25/30/50/60fps@720P | |
| Iesire video | 1 canal BNC | |
| Zi/Noapte | Auto (ICR) / Manual | |
| Meniu OSD | Multi-language | |
| BLC Mode | BLC / HLC / DWDR | |
| WDR | DWDR | |
| Gain Control | AGC | |
| Noise Reduction | 2D | |
| White Balance | Auto / Manual | |
| Smart IR | Auto / Manual | |
